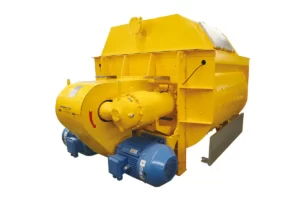

MS Energy Saving Concrete Mixer

MS Energy Saving Concrete Mixer

MS energy-saving practical concrete mixer is suitable for commercial mixing stations and engineering stations – stable, efficient, energy-saving and environmentally friendly.

Technical Features

Energy saving:

  1. Energy-saving motors can save about 10% of electricity consumption;
  2. Floating mechanical seal at the shaft end to save lubricants;
  3. Pneumatic discharge to save energy consumption;



Reliable:

  1. The motor has strong overload resistance, low noise and reliable operation;
  2. Extender and increase the scraper to stir more evenly and efficiently;
  3. Stability and reliability of shaft end seals.



Economy:

  1. The tank structure has been optimised, which is more economical and practical under the premise of ensuring tank performance;
  2. Pneumatic discharge, economical and durable, simple structure and low failure rate;
  3. Equipped with manual lubricant pump. ( Optional electric centralised lubrication pump):
  4. The main parts are highly versatile and easy to use and maintain.

Equipment parameters

Model No MS07 MS10 MS15
Feeding capacity(L) 1125 1500 2250
Discharging capacity(L) 750 1000 1500
Max particle size(mm) 80/100 80/100 80/100
Weight(t) 3.8 4.1 5.2
Power(kw) 15*2 18.5*2 30*2
Overall size(mm) 2800*1830*1575 2990*1830*1575 3230*2000*1920
Mixing time(s) ≤30 ≤30 ≤30
